JS2A-15(5000W)
Sample price (1 pc): us$1545/pc (EXW Price)
Price base on 24 pcs (20FT): us$1465/pc (FOB Shanghai)
Price base on 48 pcs (40HQ): us$1455/pc (FOB Shanghai)
Price base on 24 pcs (20FT): us$1465/pc (FOB Shanghai)
Price base on 48 pcs (40HQ): us$1455/pc (FOB Shanghai)
| Model No. | JS2A-15(5000W) |
| Dimension (L×W×H) | 1902*680*1140(mm) |
| Frame | Steel |
| Motor rating power (W) | 5000W brushless motor |
| Controller | 72V100A |
| Brake system (front/rear) | F&R: disc brakes |
| Tyre size | F&R:120/70-12 tubeless tire |
| Max Speed (km/h) | 90km/h |
| Range per charge (km) | 60-70kms |
| Battery type | 72V50AH Lithium battery |
| Recharge cycles (times) | 800 times |
| Input voltage | 110V/220V 50-60Hz |
| Charger | 72V10A |
| Charger time | 5-6 hours |
| Climbing slope | 25° |
| Loading Weight | 150KGS |
Package size
| Packing Size | 1900*700*1250mm (carton+iron frame) 1900*700*1150mm (carton) |
| Net Weight | 78kgs (without battery) |
| Gross Weight | 105kgs (battery+iron frame+carton) |
| Loading QTY |
18pcs/20GP; 36pcs/40HQ; 54pcs/40HQ (Front wheel and head off) |
Product performance description:
| Powerful 3000W/4000W/4500W/5000W brushless motor |
| High speed - **km/h |
| Front & Rear disc brake |
| Remote alarm system |
| Spring shock absorber |
| Large lithium battery capacity |
| EEC, COC certificate |
| Reliable quality, focus on EU market |

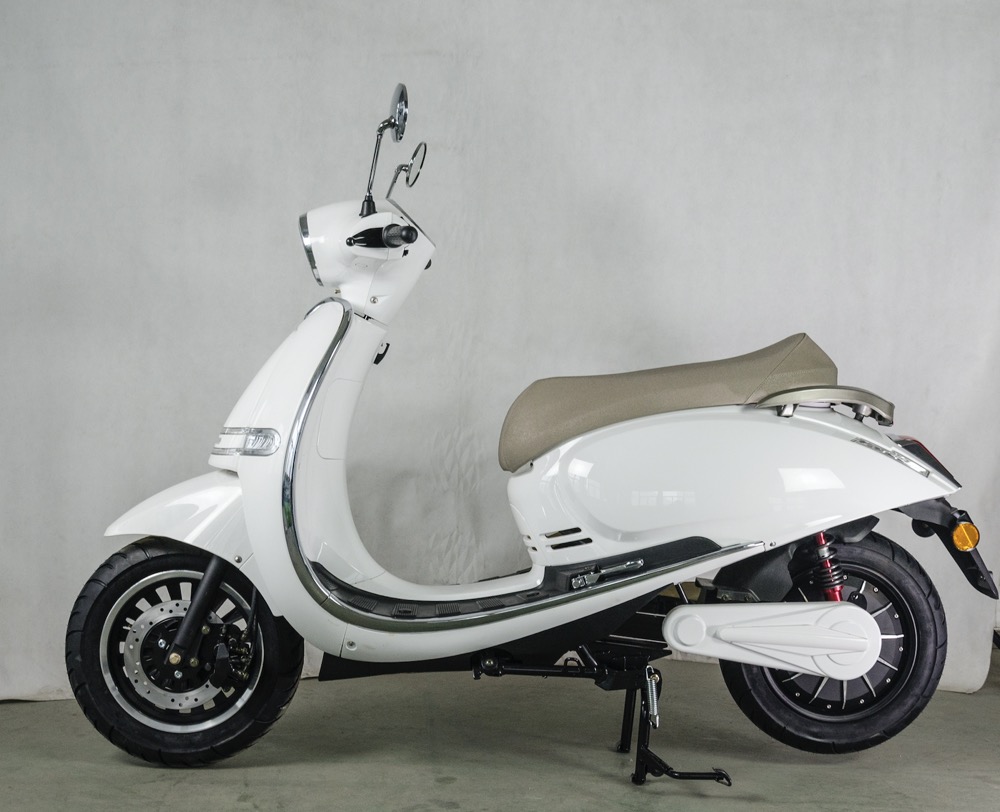

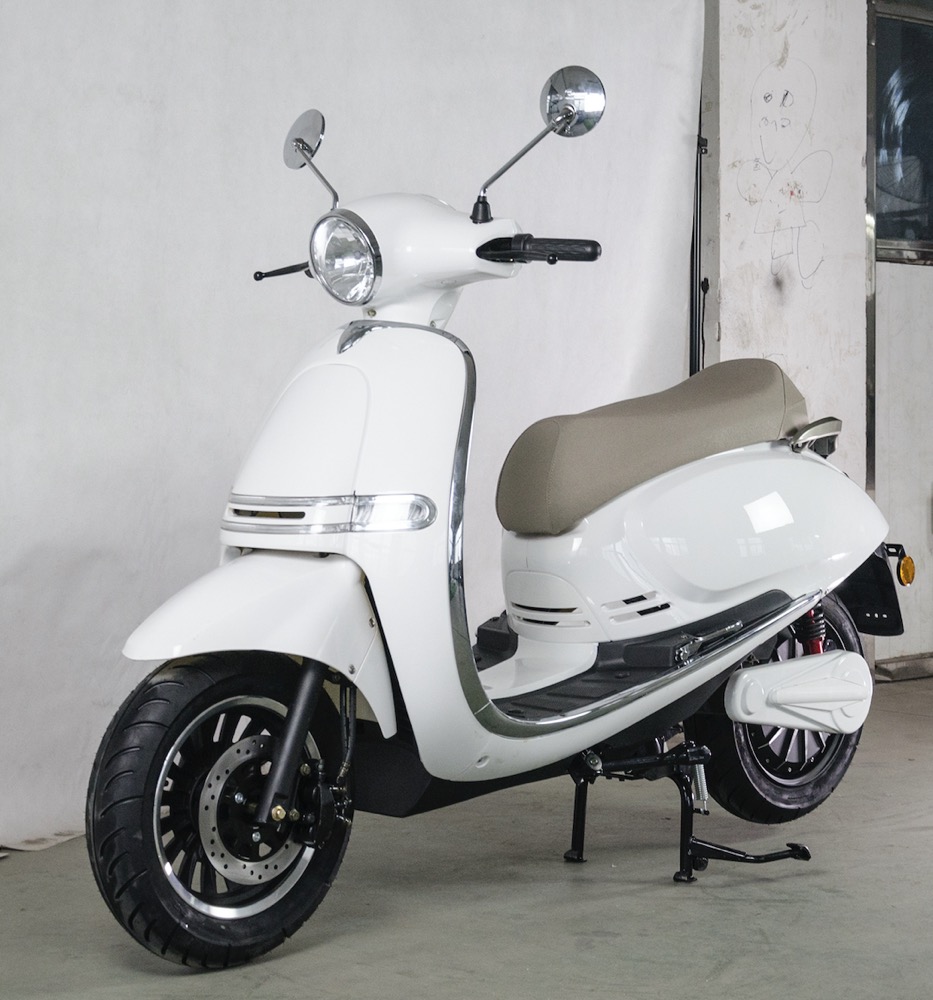

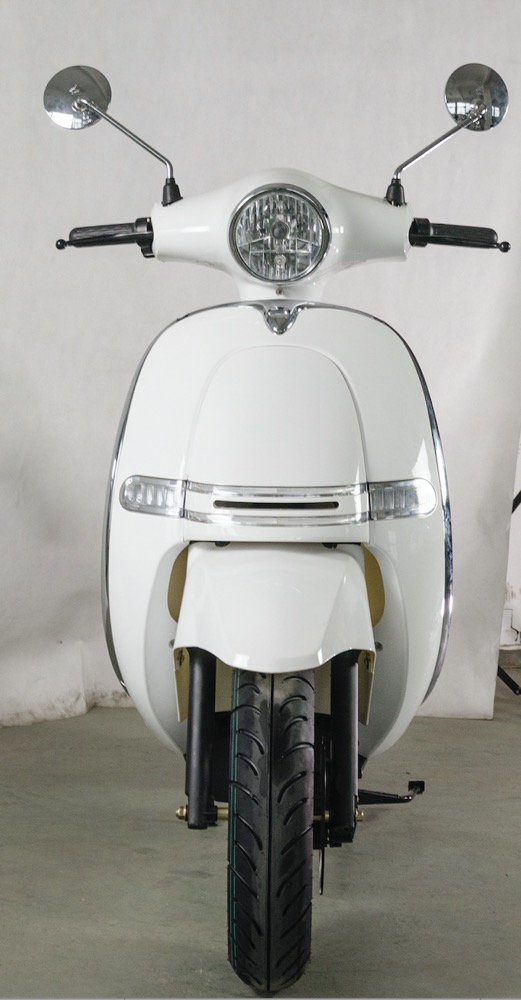

Product detail drawings and descriptions for reference:

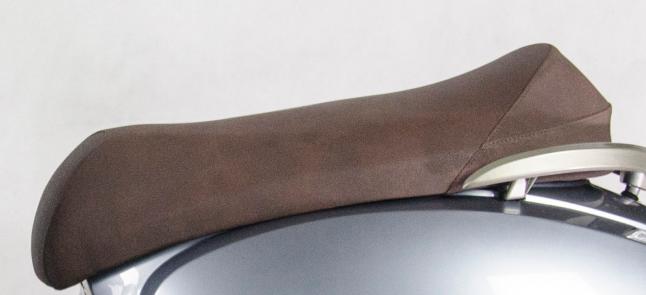

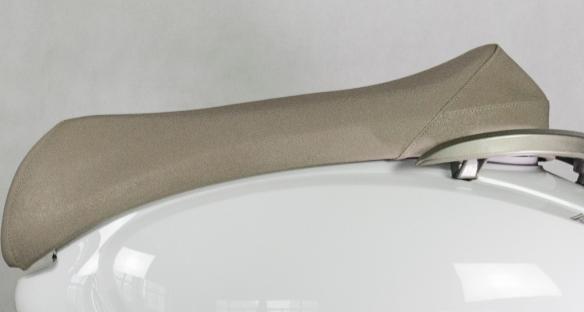

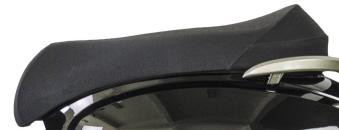

坐垫: big and comformatble seat, 3 colors for optional
